Priniciple:
Picosecond laser destroys melanin and simultaneously triggers the recovery mechanism. This can promote the regeneration and breakdown of collagen. The fast and powerful crushing ability of the picosecond laser significantly reduces the risk of thermal damage. The risk of melanin reactivation is relatively reduced.
Picosecond laser adopts photoacoustic effect. By adjusting the peak power of the laser and the exposure time (pulse width = ps), an explosion of chromophore (tattoos, various types of pigmentation) is performed.
1ps=1/1000ns, can shorten the pulse duration by 9 times than Q-Switched laser ND YAG laser: YAG(ns)

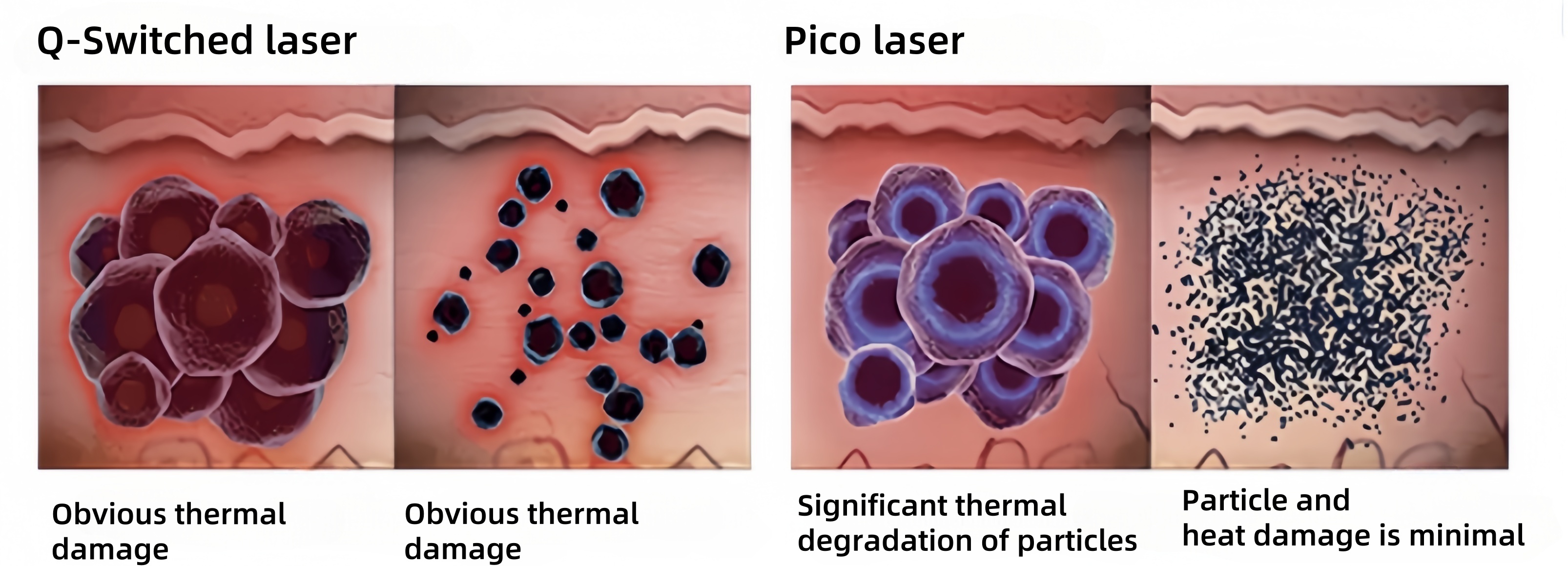

Q-Switched ND YAG laser: Yag laser explodes chromophome into small particles, picosecond laser explodes into grains of sand. Particles after processing with picosecond laser will be 13 times smaller than on Q-Switched ND YAG laser: Yag laser.
Application:
1. All colors of traumatic tattoos removal
2. All types of pigmentation removal
3. Carbon peeling
4. Laser rejuvenation5. Enlarged pores tightening6. Fine wrinkles improvement7. Acne treatment

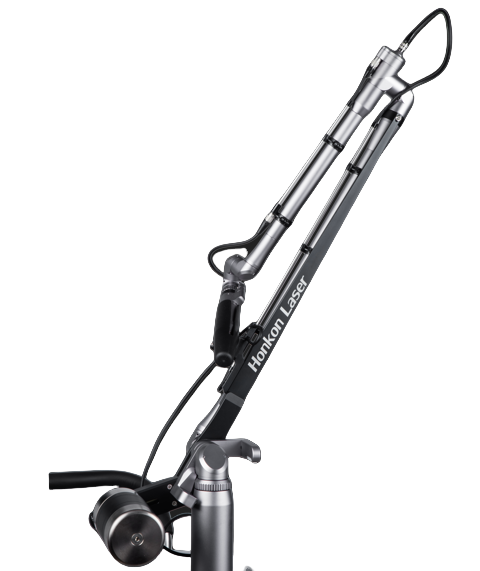

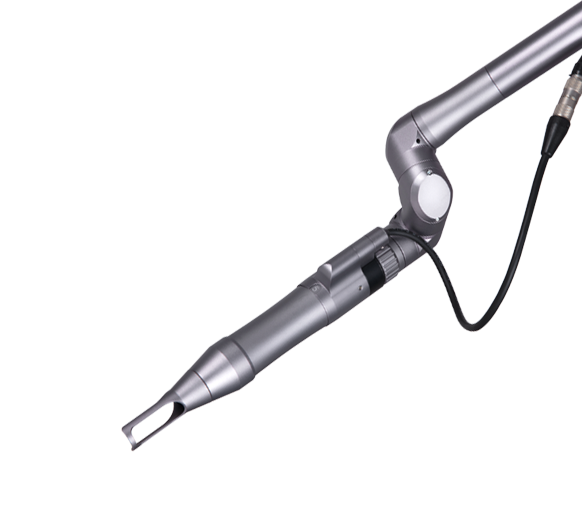

Handle:
1. 532nm wavelength: more absorbed by red, brown color2. 1064nm wavelength: laser penetration is strong enough to reach deep into the skin
Advantage:
1. Articulated console and handle from South Korea.
2. The cavity in the emitter is made in the USA.
3. The quality and service life of the crystal are the best.
4. We use a diode as the power supply for our pico laser.
5. Short pulse width (DOE-1064nm//MLA) provides powerful ability to destroy various types of pigment.
6. Uniform profile ensures uniform energy.
Before and after:
Technical specifications:
|
Model
|
1064QPH03
|
|
Laser type
|
Picosecond laser
|
|
Wavelength
|
1064nm/532nm
|
|
Single pulse energy
|
≤500mj (1064nm) ≤250mj (532nm)
|
|
Spot size
|
2-10mm
|
|
Pulse width
|
350ps
|
|
Frequency
|
1-10 HZ
|
|
Cooling system
|
Water + air cooling
|
|
Power supply
|
AC110/220V±10%，50HZ-60HZ
|
